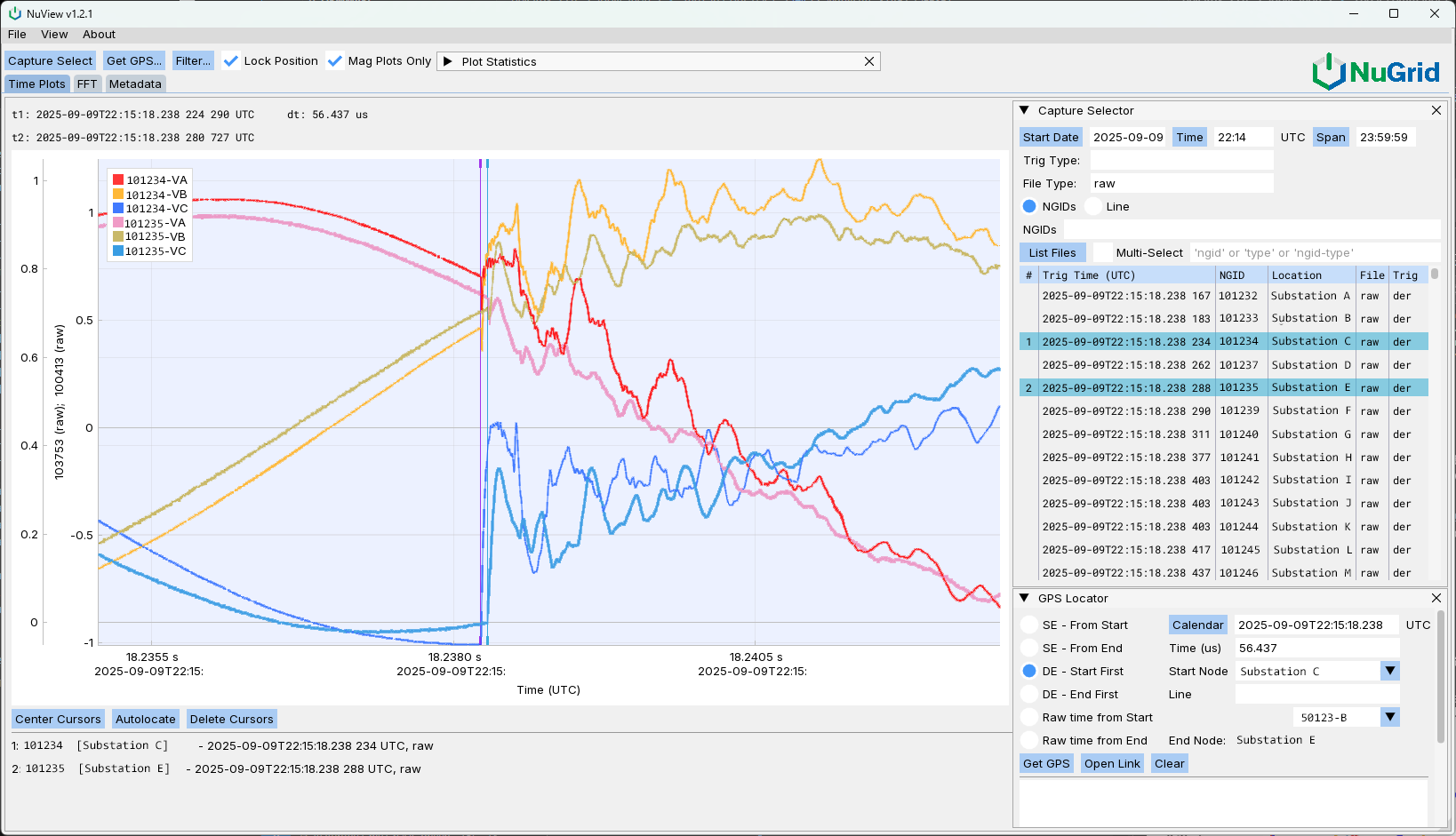

Generate GPS Coordinates Based on Time Difference Between Wavefronts
- Easily transform a time difference between nodes into a physical location on your grid
- Produce simple and easily sharable reports with key information
- Auto-generate a Google maps link pointing at the location
- Connect multiple lines together, with only one sensor at either end of the composite line
- Use either single ended (one sensor) or double ended (two sensors) analysis
- Requires a mapping file and line metadata file

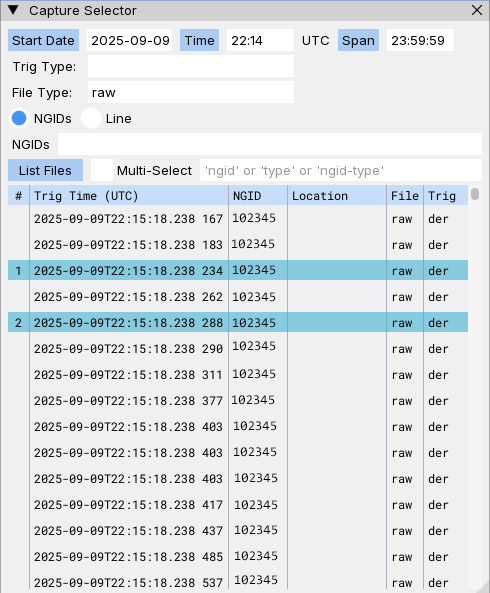

Filter and Select Files
Dive Deeper into Events with Integrated Signal Processing

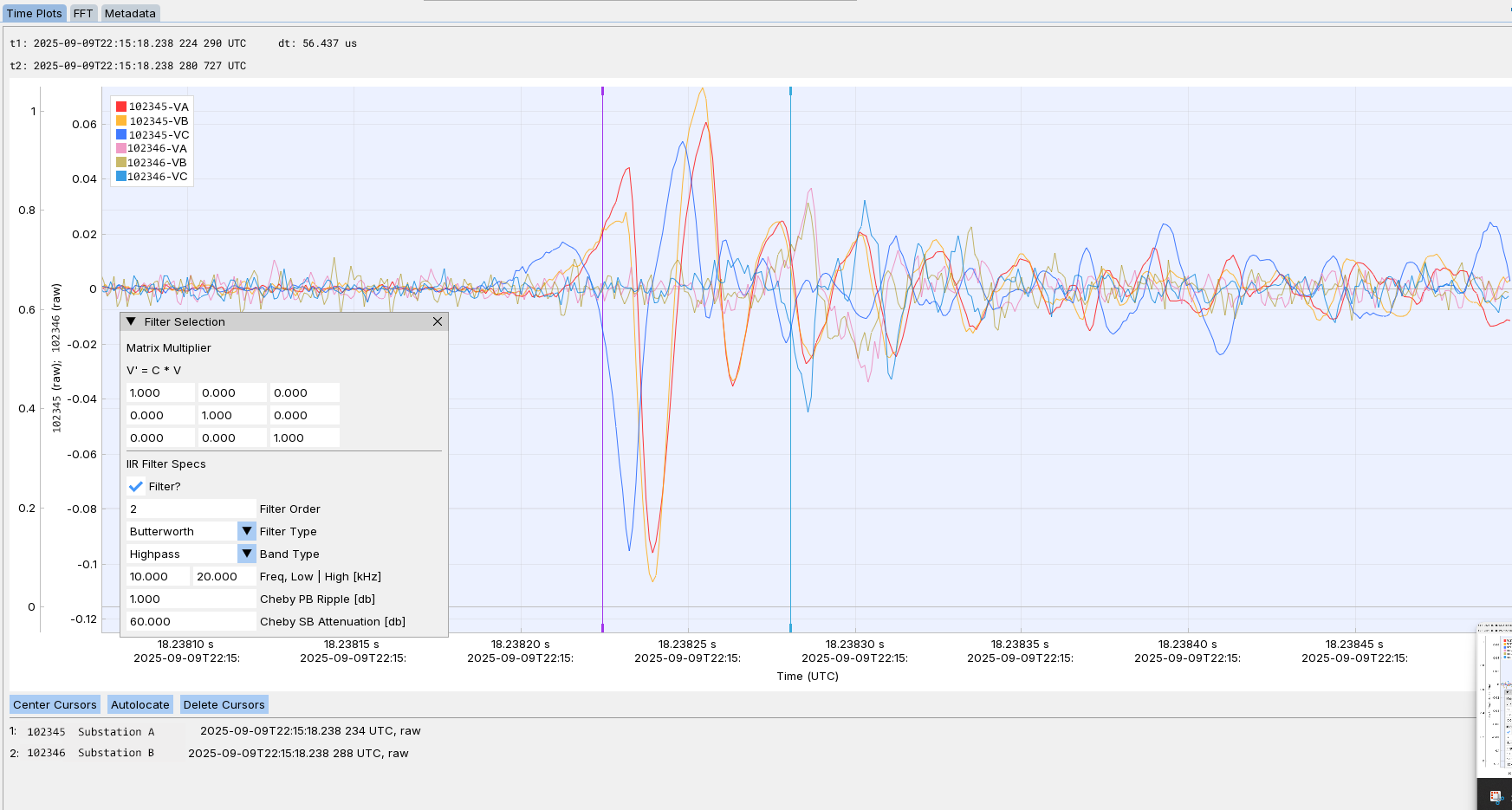

The screenshot below shows the waveform with all low frequency components removed.
- Apply highpass, lowpass, bandpass, or bandstop filters to your data
- Combine signals using matrix multiplication
- Accesskey metrics such as RMS, frequency, amplitude, and phase (automatically calculated and displayed)

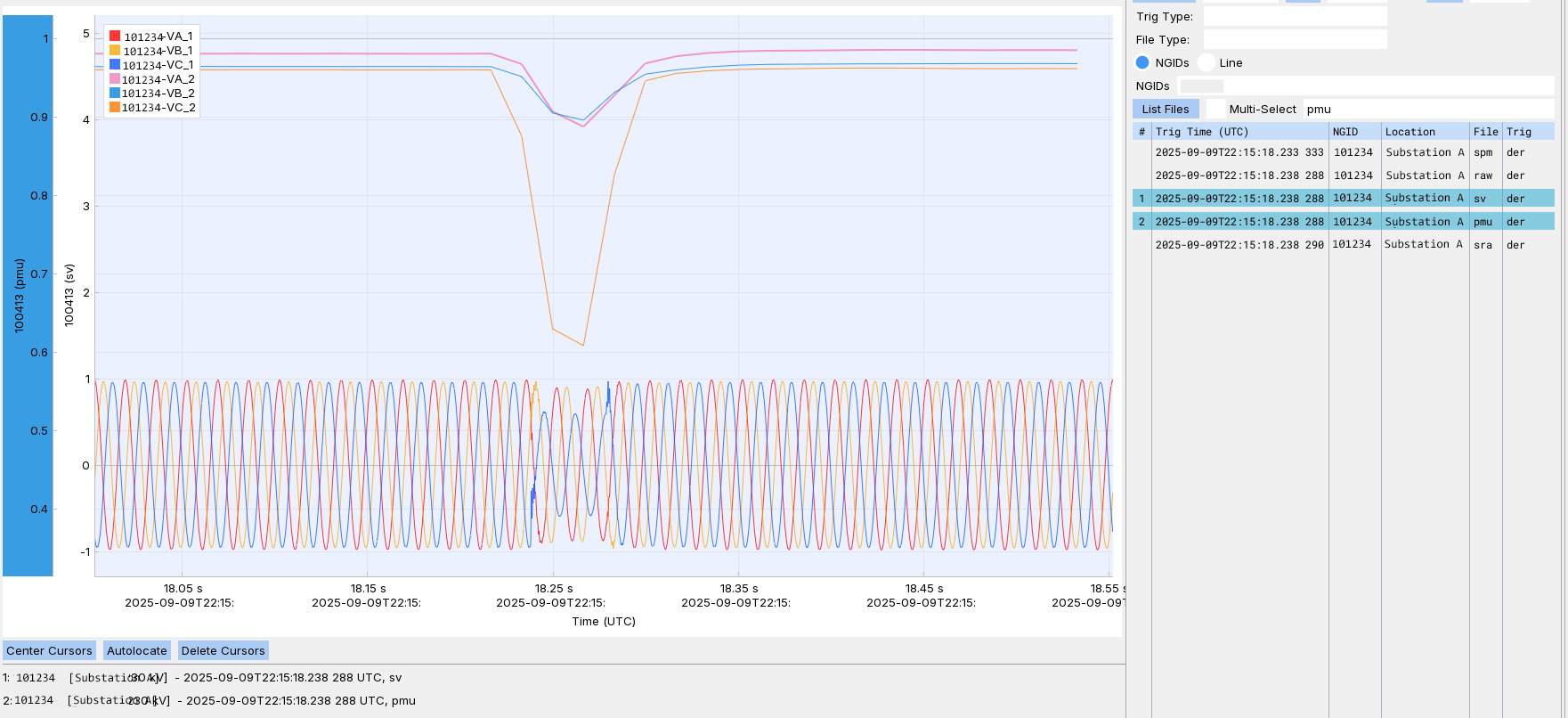

View Raw MHz Data, Sampled Values, and Synchrophasor Data
- Different resolutions of data provide different insights
- SVs can show protection times and reclosing attempts
- 60 Hz synchrophasor data can provide greater context around events
- 1Hz synchrophasor data provides continuous monitoring

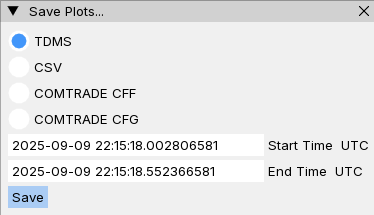

Export Files for Further Analysis
- Export COMTRADE, CSV, or TDMS files
- Optionally apply waveform transformations
- Process single files or bulk files
Alert
Receive notification of events from local triggers at the sensor nodes.
Retrieve
Microsecond-precision raw waveforms, sampled values, or PMU data.
Visualize
Time-aligned events, as seen by multiple sensors.
Analyze
Waveforms with built-in signal processing tools.
Locate
Easily turn time differences into physical event locations.
